The Semi-Automated Clinical Chemistry Photometer
Flexible & Precise

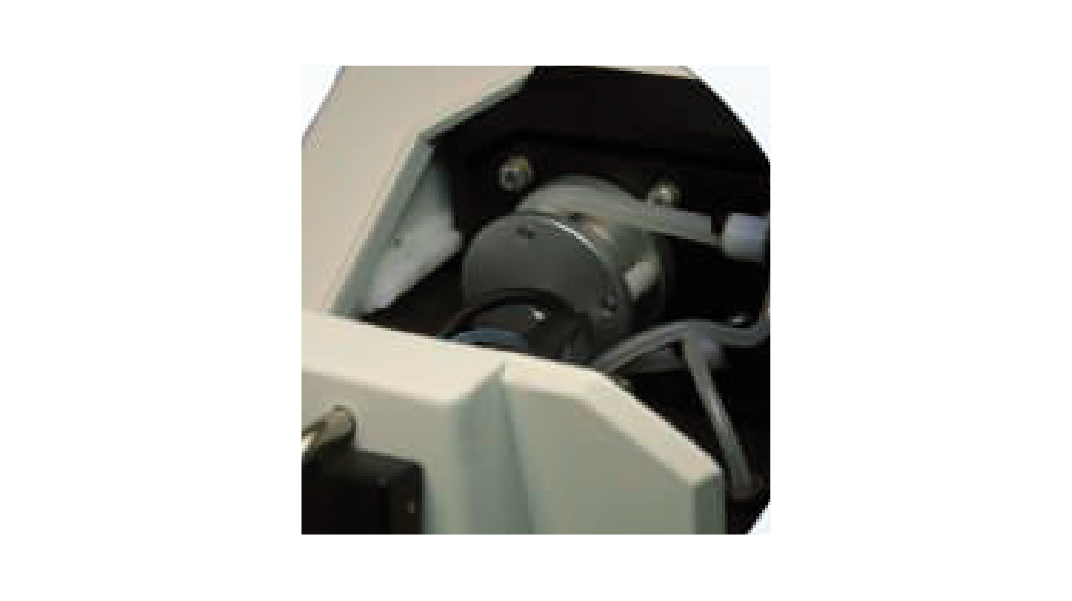

Automatic Incubation System

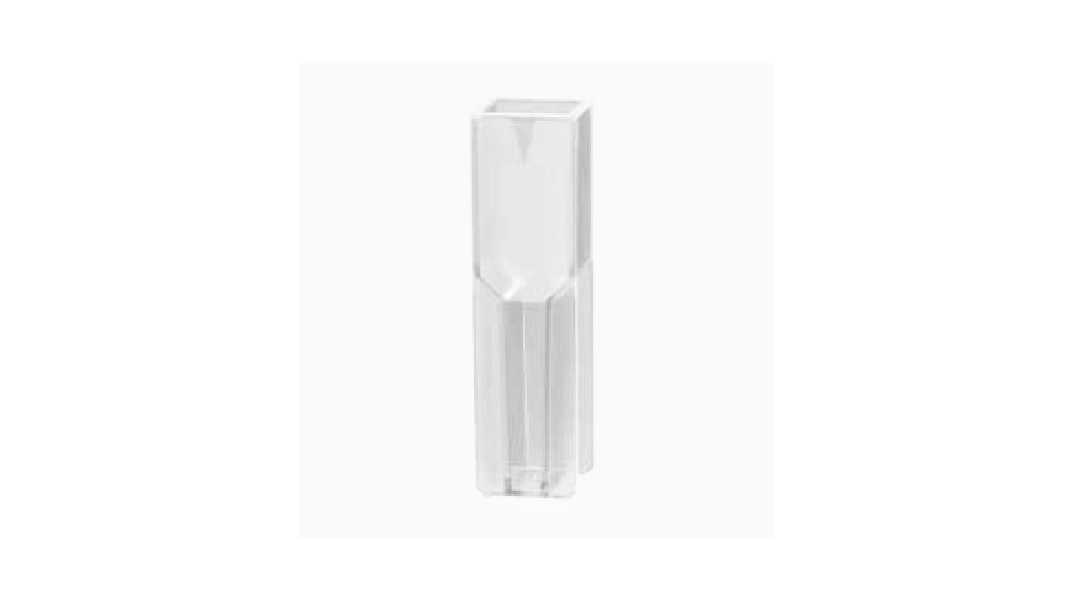

Compatible with Standard Cuvettes

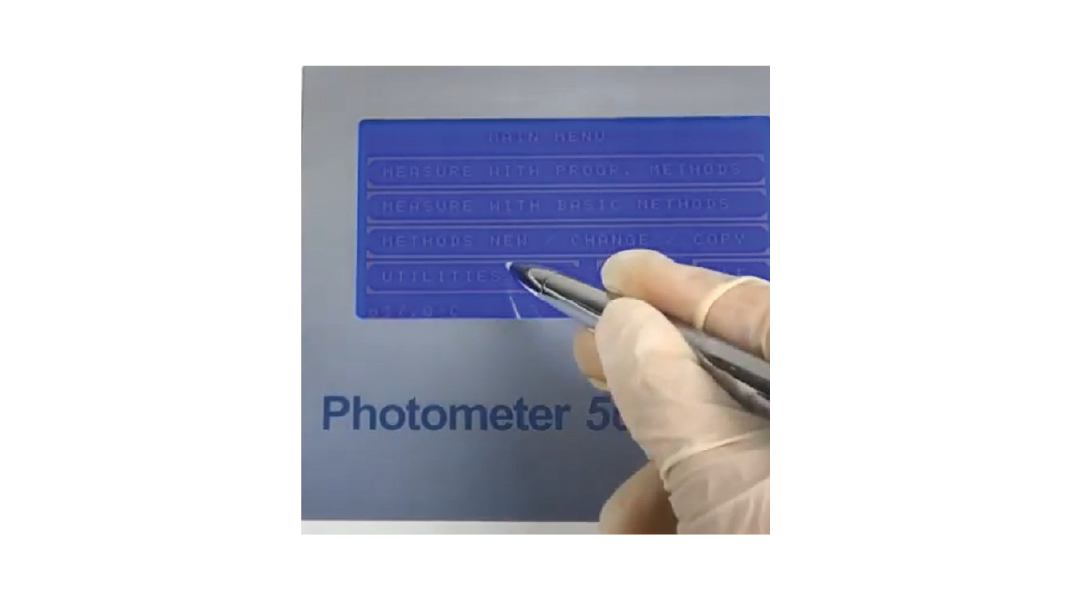

Alphanumeric Touchscreen Interface

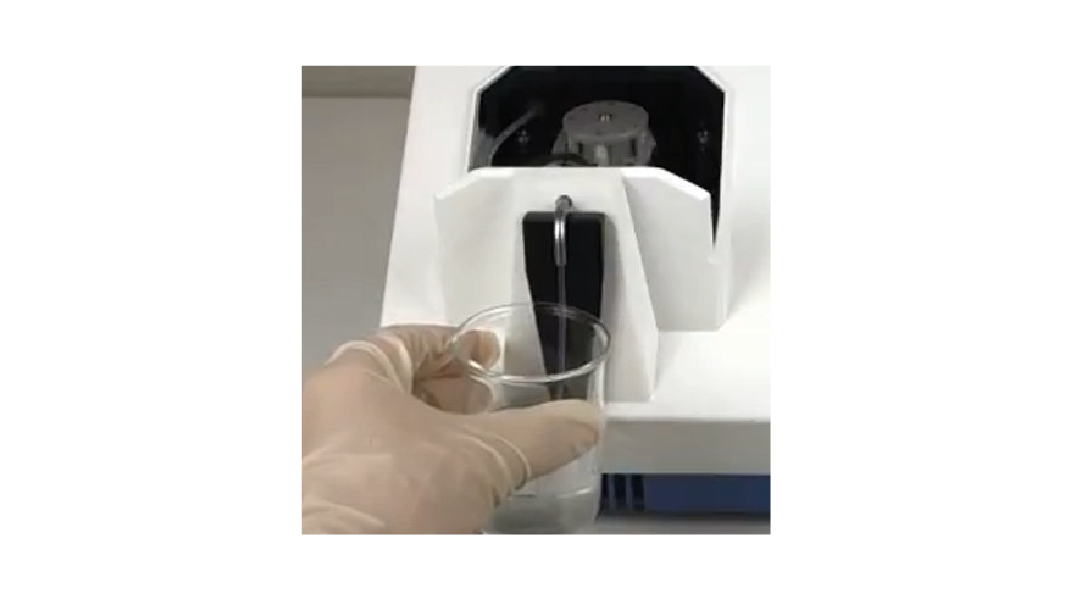

Automatic Peristaltic Pump
Designed by Robert Riele GmbH & Co KG, Germany, and manufactured in Cikarang, Indonesia, by PROLINE (the in vitro diagnostic medical device industry part of the Prodia Group Companies, which always accentuates quality in every product produced), RIELE Photometer 5010 V5+ offers flexibility in measurement methods and convenient operation for its users. This photometer is suitable for use as the main instrument in small to medium-sized laboratories or as a backup instrument in medium to large laboratories.
With a long-life LED lamp system, a wavelength range of 340 – 800 nm, 6 built-in interference filters, 3 additional filter slots, and a heating element at 25 °C, 30 °C, and 37 °C, the RIELE Photometer 5010 V5+ offers measurement flexibility. It is more than adequate for analysts of small/medium scale clinical laboratories, providing basic clinical chemistry examinations. The fluid processing system with a peristaltic pump optimizes precise aspiration results at measuring volumes of 250 μL to 2000 μL in high-quality 32 μL-flow cells equipped with a storage capacity of up to 200 method variants and 1.000 measurement results stored internally.
Photometer 5010 from ROBERT RIELE GmbH & Co KG. Learn more or our homepage.
| Model | Bench-top manual clinical chemistry photometer with single-beam filter |
| Light source | Halogen LED 12 V, 20 W |
| Wavelength | 340 nm and 390 – 730 nm |
| Sample types | Whole blood, serum, plasma, and urine samples |
| Wavelength selection system | Automatic via 9-position filter wheel: • 6 standard interference filters: 340 nm, 405 nm, 492 nm, 546 nm, 578 nm, and 623 nm • 3 positions for the optional filter of choice |
| Photometric range | 0 – 3,0 A |
| Cuvette system | Micro flow cell: 32 µl, 10 mm light path, interchangeable with normal standard cuvettes (macro or semi-micro, disposable or special optical glass) |
| Aspiration system | • Built-in peristaltic pump driven by a stepper motor • Programmable aspiration volume controlled by an infrared light barrier • Aspiration volume: min. 250 µL, typically 500 µL – 2000 µL • Separate setting of aspirate volume and wash volume |
| Temperature control | • Internal peltier element, temperature variable, pre-adjusted to 25 °C, 30 °C, and 37 °C • Equilibration time for the aspirated reaction mixture to reach 37 °C from ambient temperature: 15 sec |
| User interface | • Touchscreen for direct functions and alphanumeric input • Graphic display: white characters or symbols, blue backlight • Screen resolution 240 x 128 dots |
| Measuring time | • Kinetic: variable from 3 – 28 deltas, time per delta 4 – 255 sec in 1 sec steps • Fixed time: variable range from 0 – 65,535 seconds |
| Integrated printing system | Thermal printer, dot matrix, 24 characters per line |
| Software system | • Reagent open system with capacity for up to 231 programmable methods • Up to 50 non-linear calibration curves with a maximum of 20 sets of points can be stored • Up to 1,000 measurement results can be automatically stored in memory. • Languages: Indonesian, English, French, German, Russian, Spanish • General operating software can be updated by PC • Data import by touchscreen or PC • Can be connected to an external PC/printer using the RS-232 connector |
| Measuring capability | • Absorbance • End Point with factor, standard, or multiple standards, with or without reagent • Bichromatic endpoint • Kinetics with standard, factor, or multiple standards, with or without blank • Fixed time with standard, factor, or multiple standards, with or without a reagent blank • Turbidimetry with optional timer function • Single, double, and triple determinations • Curve fitting for nonlinear standard curves • Free hemoglobin in combination with optional interference filters |
| Quality control | Up to 50 methods can be controlled with two control serums, Levey Jennings plot |
| Power consumption | AC 90 – 264 V, 60/50 Hz |
| Dimension | 33 cm (L) x 34 cm (W) x 18 cm (H) |
| Weight | 5 kg |
| Measurement in decibels | Leq 50,20 dBA L90 48,30 dBA |
